TDI Tech Development TurboTwin

Designed For
PRATT & WHITNEY
Engines


  Allison
  Dresser Rand
  GE
  Kawasaki
  Kongsberg
  Pratt & Whitney
  Rolls Royce
  Solar
  Volvo


TDI Turbo-Twin Starter Catalog
Download Our Catalog Here  for Gas Turbine Engines

Download Product Spec Sheet 1 Download Product Spec Sheet 2

Download Low Pressure Air Starter Brochure for Pratt & Whitney Engines






56A is a Rugged Industrial Air Starter
Designed to fit Pratt & Whitney GG3, GG4,
  FT4 and FT8 Gas Turbine Engines

Standard Pressure   Low Pressure
  • 165 hp (124 kW) on compressed air

  • 155 hp (114 kW) on compressed air
  • 210 hp (158 kW) on natural gas

  • 165 hp (121 kW) on natural gas
  • Max Pressure 150 psig (10 BAR)

  • Max Pressure 50 psig (3.44 BAR)
  • 48 lbs

  • 48 lbs

Tech Development Turbine Air Starters are the world's #1 air starter for stationery power generation, gas transmission, oil & gas, mining and marine applications. No one has more turbine air starters in the field than Tech Development.



Designed for Reliability at Every Level
TurboStart's feature only quality aluminum and steel alloy parts designed by engineers who have developed more turbine air starters than any other manufacturer. All TurboStart's feature Tech Development's unique sprag clutch with 22 contact points that delivers the most efficient and reliable engagement.

The Cost Effective Choice
TurboStart is specifically designed for stationery gas turbine engines � not for flight engines. The manufacturing efficiency for "ground" applications delivers a significantly lower purchase price that is thousands of dollars less than starters designed for flight. The savings continue in the field too. No need for pre-lubricated drive air and the simplicity of the single planetary gear design makes the unit almost maintenance-free.






Seamless & Economical
Retrofit For
Aeroderivative
Starters
From Air Research,
Honeywell and Parker


The Industry's Most Reliable Clutch
System


TDI's unique Sprag Clutch evenly distributes torque across 22 points of contact (compared to three on typical systems) which reduces wear by over 400%, extending life, assuring reliability, and eliminating the need for temperamental ramping controls.

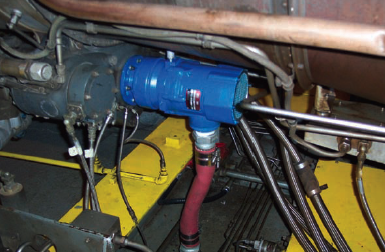

TDI 56A on Pratt & Whitney FT-4
